Open Hardware

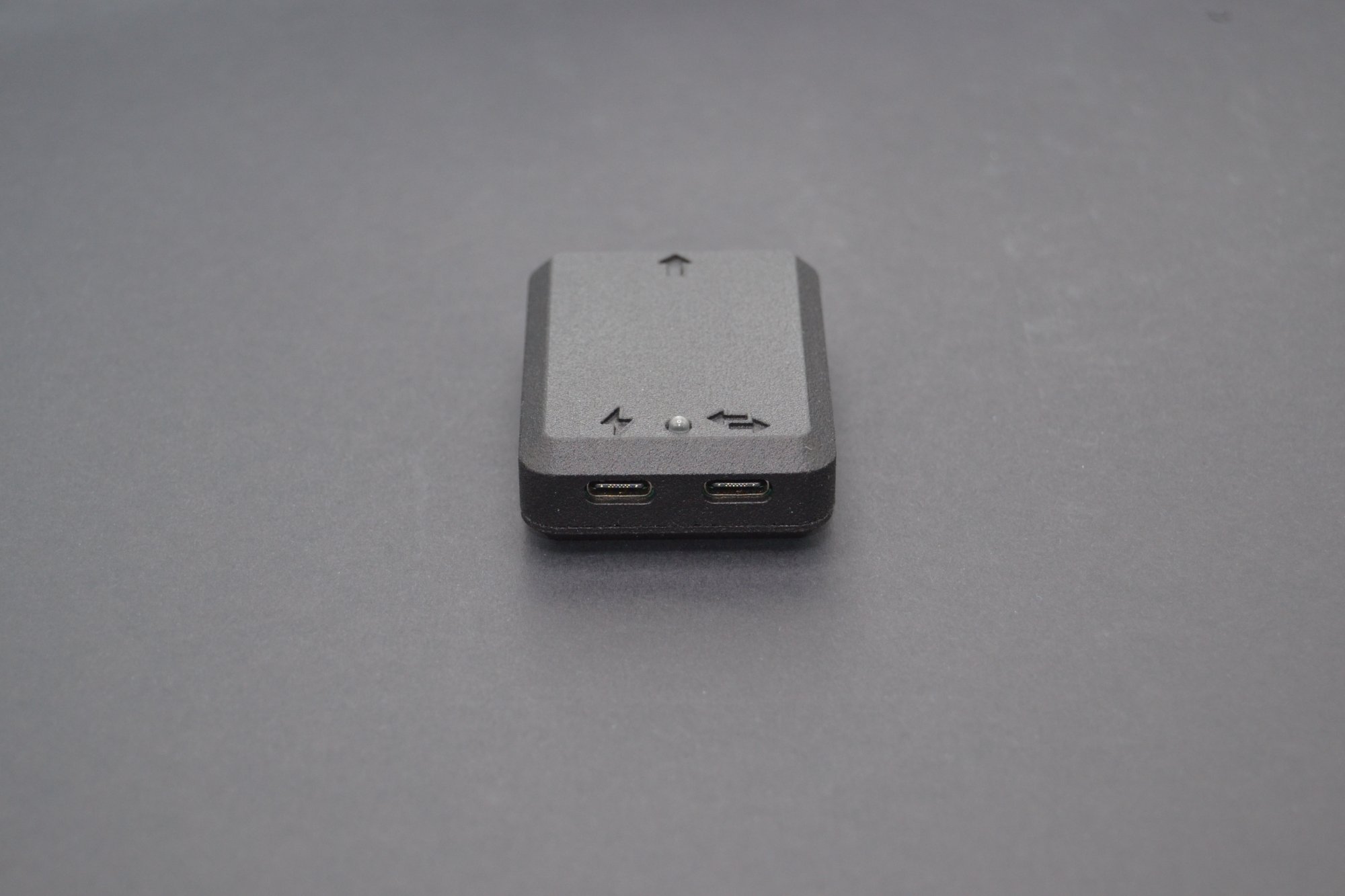

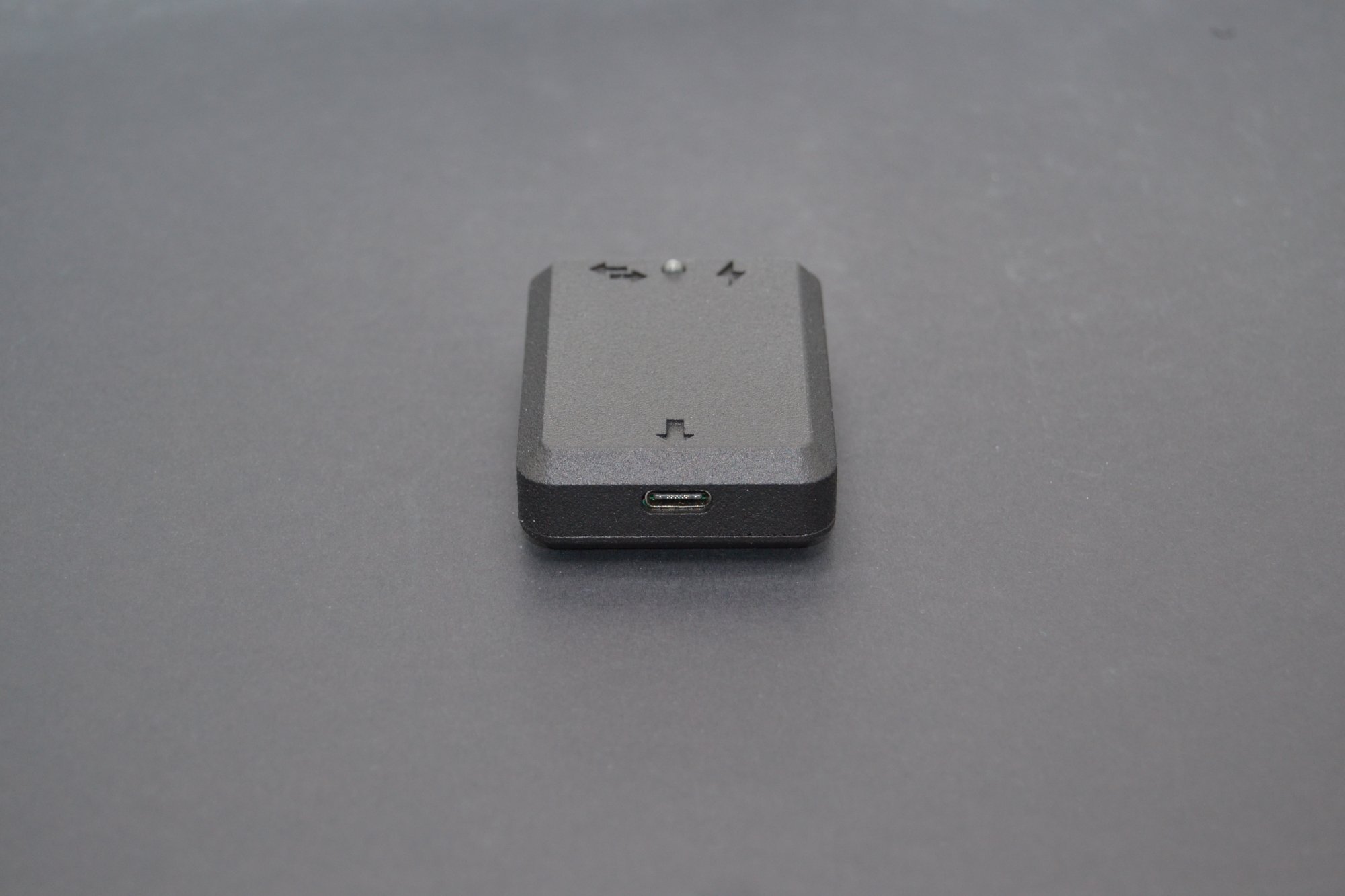

Want to print your own case? Download the STL files below and print at home or through a print service. The electronics board is identical across all case versions.
Required Part — Not Included
The case is designed for a 3 mm round press-fit Dialight Optopipe® 515 series light pipe (reverse-mount, vertical). You need to source one separately. Two recommended options:
| Part Number | Lens | Effect |
|---|---|---|
| 51513050125F | Domed · diffused | Soft, wide-angle glow. Good all-round choice for a subtle status indicator. |
| 51513040188F | Flat · clear | Crisp, focused output. Higher apparent brightness on-axis. |
Print Material
Material is your choice. Recommendations for daily in-car use:
| Material | Verdict |
|---|---|
| PETG | Recommended. Good heat resistance, easy to print, dimensionally stable. |
| ABS | Recommended. Excellent heat resistance — best for hot climates or direct sun. |
| PLA | Works in moderate conditions but may soften in a car parked in direct sun. |
| Nylon PA12-HP | Used in the factory Upgraded version. Excellent heat and flex resistance. |
Prefer a ready-made case? The Standard (PLA) and Upgraded (Nylon PA12-HP) versions ship with the adapter on Tindie →
California Prop 65 Notice
If you print with PLA or other common filament materials, a Prop 65 warning may apply depending on your specific filament. Always check your filament manufacturer's documentation for applicable safety information before printing.
